THIS IS AN UNFORMATED REPOSITORY OF INFORMATION FOR USE IN FORUMS AND IS ON GOING WORK.
When time permits and as the data becomes more complete I will be formatting the page into someting more useful.
Code links to mux bridge modified for inserting multiple messages :

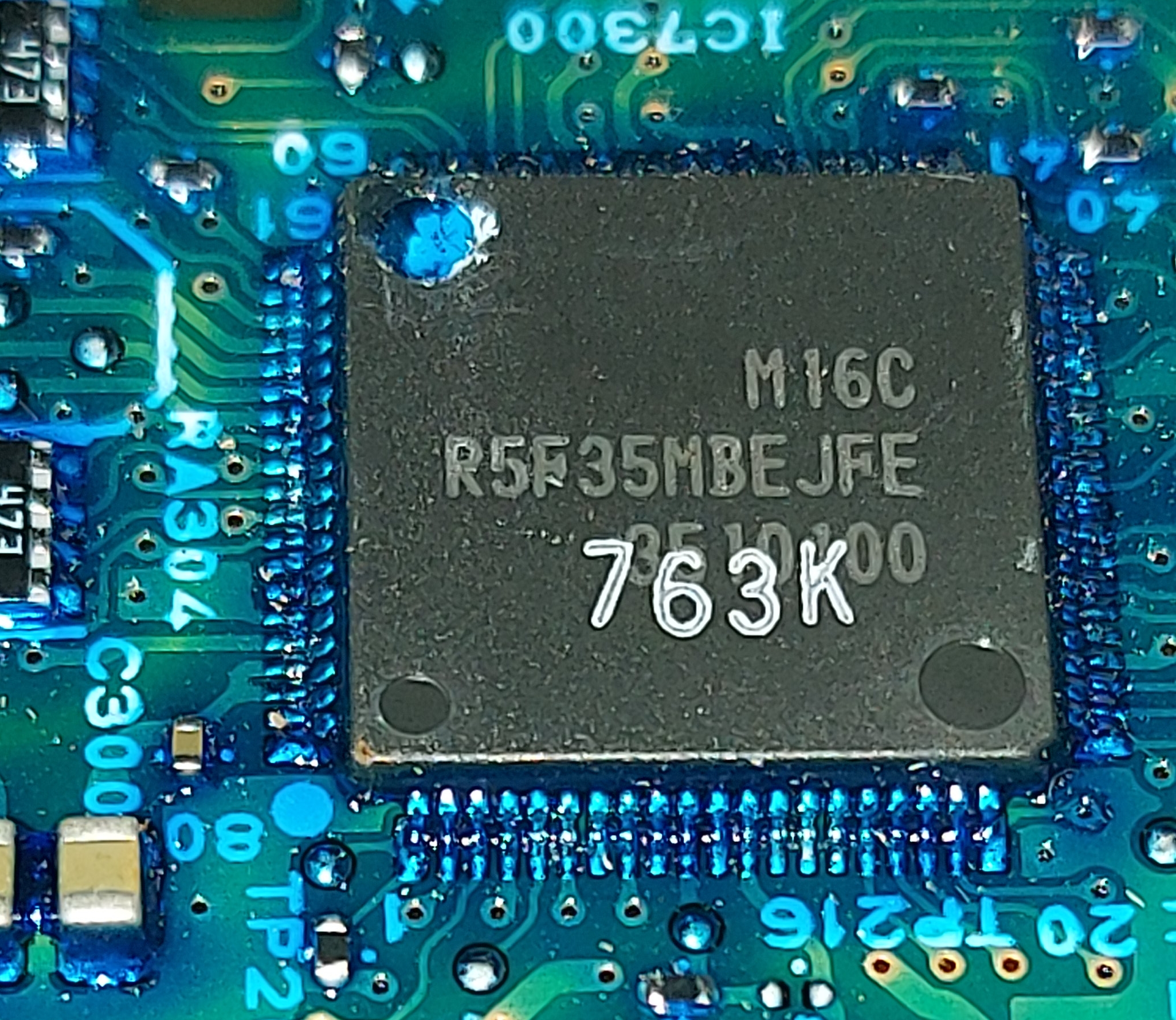

The micro controller in the OBC/PD

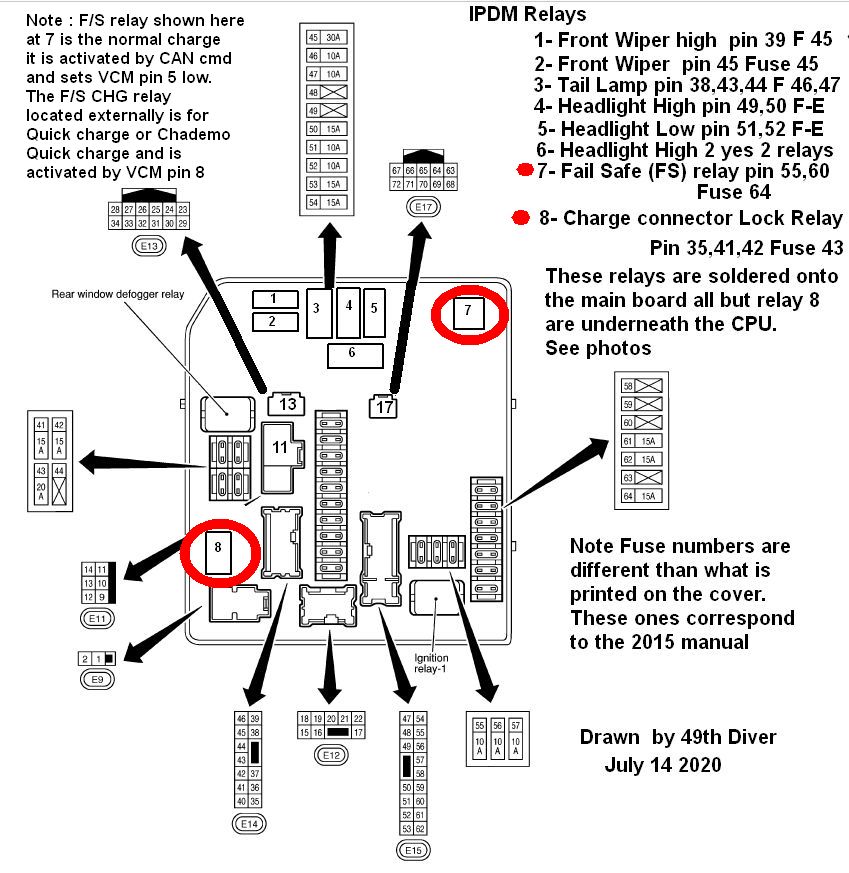

This is the some IPDM detail not included in the manual click for higher res.

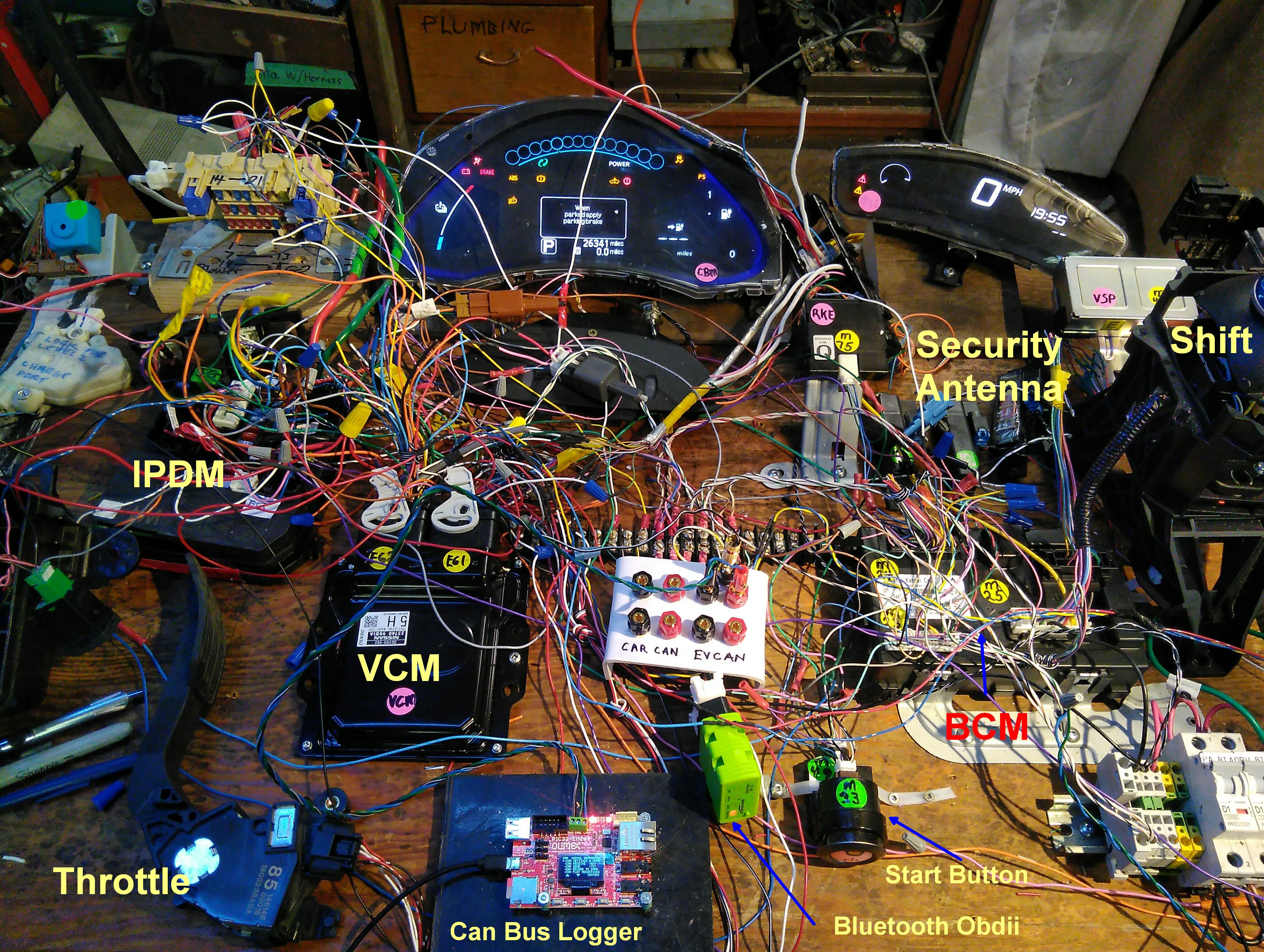

LEAF on Plywood

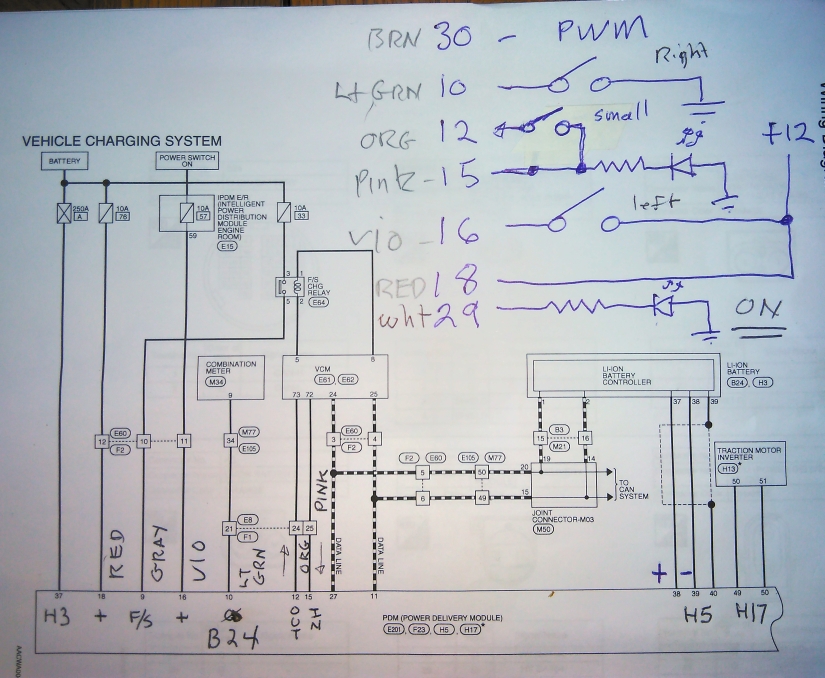

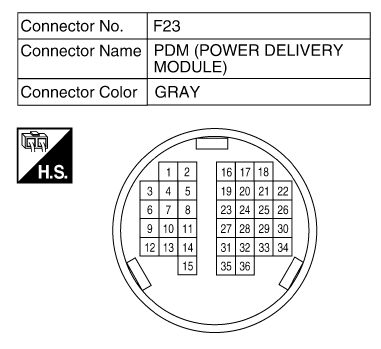

The single connector to the PDM. see diagram below.

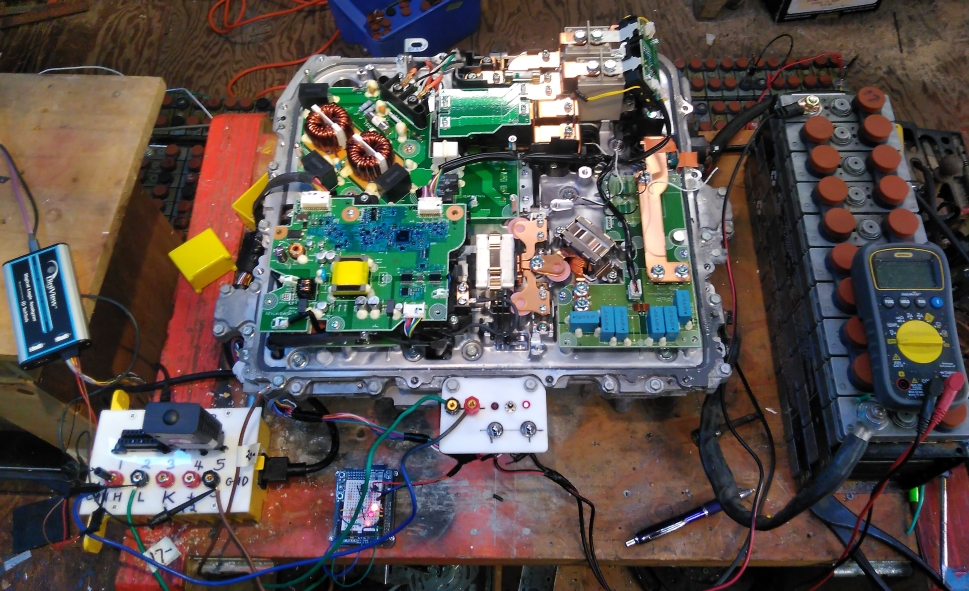

Test jig, white board shown in photo attached to fromt of charger OBC/PDM

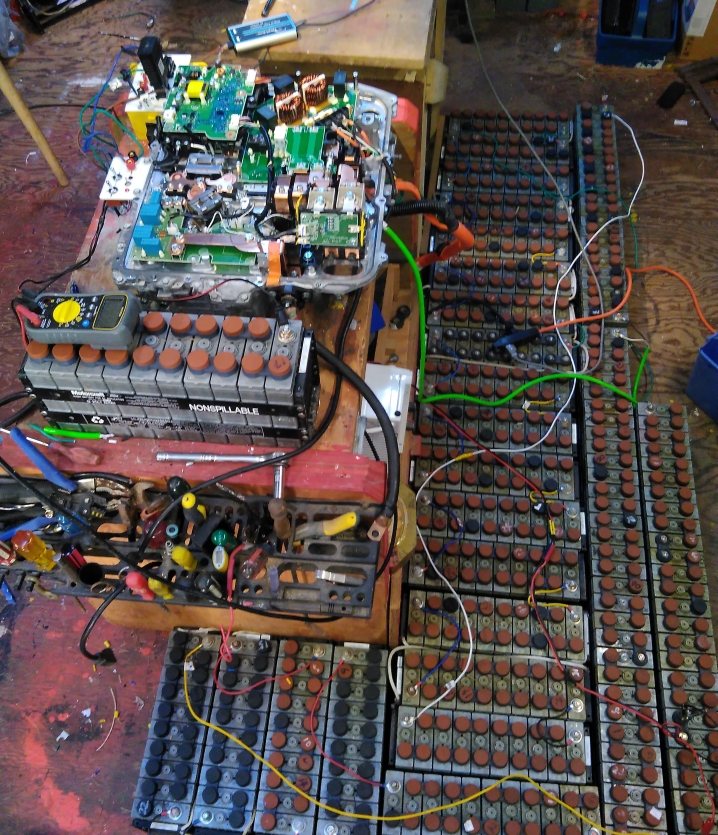

350 volts of NIMH batteries to simulate a load, just incase it actually came on. No luck yet.
Can Capture from configuration above, completely stand alone,
EVCAN system circuit data sniffing : CANEV SYSTEM Feb 22-2020.xlsx

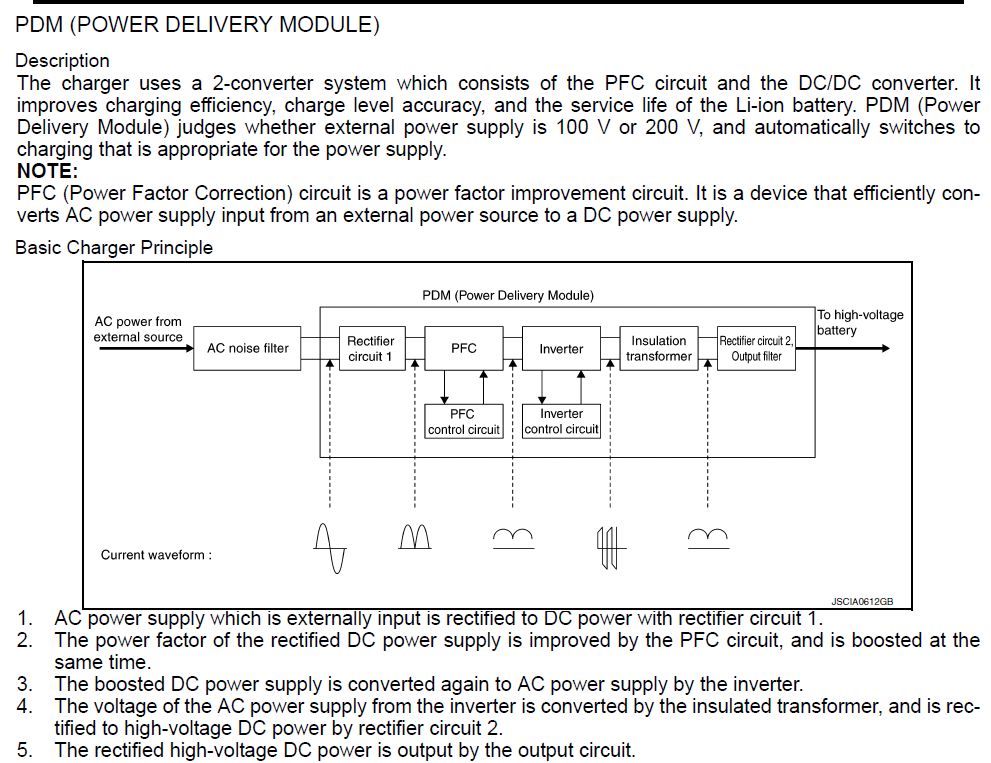

PDM charger outline diagram.
Here is a data sheet that I understand is the heat of the PDM.
Latest data from leaf on plywood via a man in the middle device built from an Arduino Due and CnDue 2.2 shield from EVTV and Collin Kidders original code,
